Technical Specifications
Features
- 3 layers | Polystyrene
- Thickness: 2"
- Exterior face: light woodgrain finish | Interior face: stucco finish
- Door interior: regardless of the color chosen, the inside is always White (door, window frames and inserts).
Sizes
- Widths from 8' to 20', in 1" increments
- Heights from 6'6" to 8', in 3" increments
Please contact us for more details on other available sizes.
Colors
STEEL (light woodgrain finish)
Solid colors
Standard
White
Almond
Sahara
Sandstone
Terrastone
Brown
Premium
Black Ice
Charcoal
Faux Wood
Dark Walnut
Weathered Grey
Premium and Faux Wood colors: small additional fees apply.
The accuracy of colors on the website may vary depending on your screen settings. To see the true colors, please contact your local Garaga dealer for a sample.
8’ high door layouts
The 8’ high doors are built with 5 sections.
Layouts
|
Shaker‑Flat Short |
 |
|
8' to 11' |
 |
|
10' to 11' |
 |
|
12' to 15' |
 |
|
16' to 18' |
 |
|
19' |
 |
|
20' |
|
Shaker‑Flat Long |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|
15' to 18' |
 |
|
19' to 20' |
|
Classic Short |
 |
|
8' to 9' |
 |
|
10' to 11' |
 |
|
12' to 13' |
 |
|
14' to 15' |
 |
|
16' to 18' |
 |
|
19' |
 |
|
20' |
|
Classic Long |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|
15' to 18' |
 |
|
19' to 20' |

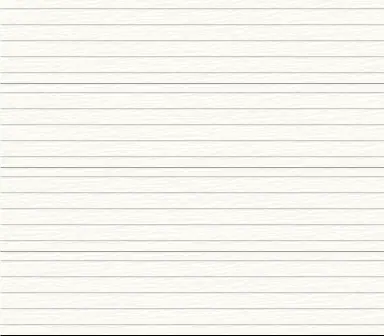

Moderno Echo
Available section heights: 18" and 21".
Flush
Available section heights: 21" and 24".
|

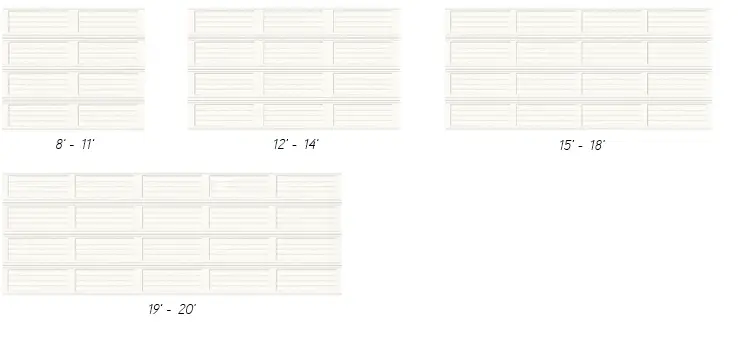

Shaker‑Flat XSmall |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|
15' to 18' |
|
Shaker‑CS Short |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|
15' to 18' |
 |
|
19' to 20' |
|
Shaker‑CS Long |
 |
|
8' to 11' |
 |
|
12' to 14' |
 |
|
15' to 18' |
 |
|
19' to 20' |

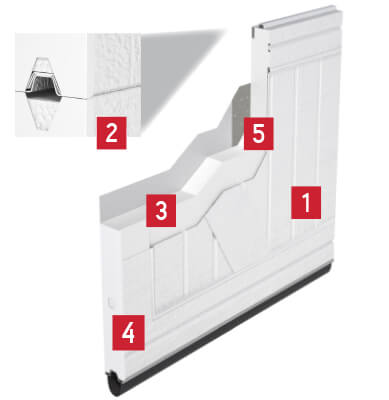

Construction
3 layers | Polystyrene
(Steel + Polystyrene + Steel)
|
1
|
26‑gauge pre‑painted galvanized steel for high durability |
|
2
|
2" tongue-and-groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety |
|
3
|
Polystyrene insulation pressure bonded between two layers of steel for energy efficiency |
|
4
|
20‑gauge white baked‑on paint finish end stiles for a nice clean look |
|
5
|
Full‑length reinforcing plates to solidly attach hinges and struts |
The Garaga Wind Load Option is only available for specific regions. Talk to your local garage door dealer for more information.
†The Vantage garage door model belongs to the Mid‑America series of products.
